Nashville Division
Henderson Subdivision
(Evansville, IN to Nashville, TN)
SIGNAL LIST
Henderson Subdivision-HE

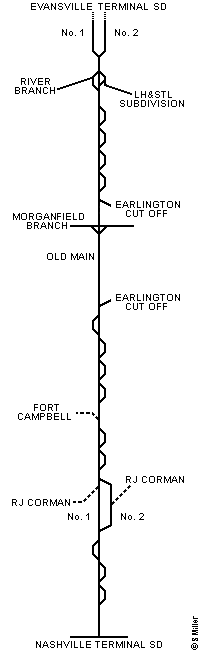

Station List and Diagram

This information comes from the 'CSX Transportation Nashville Division Timetable No. 1', effective Sunday, October 1, 2000.

See ClueCon2021 trip notes for DD mileposts heard

Radio:  SA Dispatcher channel 58,  Road channel 84
144.5 Miles  ·  Hybrid to Amqui
â SOUTH â MP Station Siding Notes
H321.3 Hybrid   End Evansville Terminal SD
Begin Henderson SD
H317.5 FS Tower   SEDT
H312.8 Henderson 5460' Jct LH&StL SD
Jct River Branch
H301.3 Robards 6967'
H297.5 Sebree 9428'
H292.7 Breton 4253'
H282.1 Hanson 4899'
H278.0 Arklow   NEDT, Jct Earlington Cut Off
H276.5 Trident   Jct Morganfield Branch
H275.4 Madisonville
H271.2 Earlington
H267.9 Morton   SEDT, Jct Earlington Cut Off
H264.2 Nortonville 8547'
H253.3 Crofton 6762'
H247.6 Kelly 13504'
H240.8 Latham 4884'
H239.5 Hopkinsville   Jct Ft Campbell RR
H234.8 Casky 7928'
H223.3 Trenton 6582'
H217.0 Moore   NEDT
H215.8 Guthrie Yard Jct RJ Corman RR
H214.4 Ace   SEDT
H204.4 Cedar Hill 5542'
H193.1 Courtland 9551'
H180.5 Goodlettsville 5729'
H176.8 Amqui   End Henderson SD
Jct Nashville Terminal SD
Earlington Cutoff
8.9 Miles  ·  Arklow to Morton
â SOUTH â MP Station Siding Notes
HC276.8 Arklow 6912' Jct Old Main
HC275.1 Atkinson Yard Jct MH&E Branch
Jct Morganfield Branch
HC273.2 East Diamond   Jct East Diamond Spur
HC267.9 Morton   Jct Old Main
MH&E Branch
24.3 Miles  ·  Kronos to Atkinson
â SOUTH â MP Station Siding Notes
HE119.3 Moorman   Jct O&N SD
HE131.5 Newcoal
HE138.5 Atkinson   Jct Earlington Cutoff
Morganfield Branch
23.0 Miles  ·  Dotiki Mine to Atkinson
â SOUTH â MP Station Siding Notes
MF298.3 Dotiki Mine
MF-MB296.9 Dotiki Junction
MB294.1 Diamond Junction   Jct Tradewater RR
MB291.8 Providence
MB288.8 Providence No. 1
MB288.4 Shamrock Junction
MB282.8 Colonial Junction
MB277.8 Como Junction   Jct Pee Vee Spur
MB275.8 Trident   Jct Henderson SD Old Main
OMB275.3 Atkinson   Jct Earlington Cutoff
River Branch
6.0 Miles  ·  WKT to Henderson Port
â SOUTH â MP Station Siding Notes
IHR0.0 WKT 1598 Jct Henderson SD Main
IHR0.9 Penod 2129
IHR2.0 McMillan
IHR5.0 Route 60   Henderson Port
Authority for Movement
Between Location/Mile Post Rules
H321.3 and H176.8 265-272
HC276.8 and HC267.9 265-272
IHR0.0 and IHR5.0 (River Branch) 120-132
HE138.5 and HE110.5 End of track (MH&E Branch) 120-132
MB275.3 and MF298.3 (Morganfield Branch) 120-132
Note: Rules 265-272 are in effect on Kelly and Sebree sidings.
DTC Block Limits
MH&E Branch
Between Location/Mile Post Block Names
HE138.5 Atkinson and HE132.5 Atkinson
HE132.5 and HE118.8 Moorman Moorman
HE118.8 Moorman and HE114.3 Kronos Kronos
HE114.3 Kronos and HE110.5 Alston (End of Track) Alston
Morganfield Branch
Between Location/Mile Post Block Names
MB276.3 South Yard Limit Trident and MB282.8 Colonial Trident
MB282.8 Switch at Colonial and MB290.0 Providence Hibbs
MB290.0 Providence and MB294.1 Switch at Diamond Junction Providence
MB294.1 Switch at Diamond Junction and MF298.3 Diamond Junction
River Branch
Between Location/Mile Post Block Names
IHR0.0 and IHR3.0 Colts
IHR3.0 and IHR5.0 Wildcat
Maximum Authorized Speed
Between Location/Mile Post MPH
Hybrid and Amqui 60
Earlington Cutoff (Arklow and Morton) 50
MH&E Branch 25
Morganfield Branch 25
River Branch 10
Defect Detectors
MP Location Type Indicators
H304.2 Robards AD West side
H283.6 Hanson AD West side
H262.0 Romney AD West side
H254.0 Crofton ADD West side
H245.6 South Kelly ADD East side
H237.8 Casky AD East side
H214.4 Ace ADD West side
H212.2 Sadlers AD West side
H203.6 Cedar Hill ADD East side
H194.2 Courtland AD West side
Railroad Crossings at Grade
MP Location Railroad Protection
MB276.5 Trident CSX Remotely Controlled
HE119.2 Moorman CSX Gate
