Nashville Division
Memphis Subdivision
(Bruceton, TN to Memphis, TN)
|
Memphis Subdivision-MP

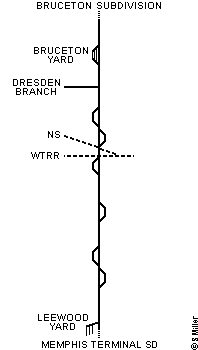

Station List and Diagram
This information comes from the 'CSX Transportation Nashville Division Timetable No. 1', effective Sunday, October 1, 2000.
|
Radio: AY Dispatcher channel 94, Road channel 84 |
132.5 Miles · Lipe to Leewood |
â SOUTH â |
MP |
Station |
Siding |
Notes |
|
N90.7 |
Lipe |
|
End Bruceton SD Begin Memphis SD |
N94.5 |
Bruceton |
Yard |
|
N116.1 F263.2 |
McKenzie |
|
Jct Dresden Branch |
F270.2 |
Trezevant |
8965' |
|
F283.3 |
Milan |
3960' |
Jct NS |
F294.7 |
Humboldt |
2695' |
Jct WTRR |
F306.7 |
Bells |
1980' |
|
F317.8 |
Brownsville |
8965' |
|
F340.5 |
Mason |
|
|
F344.4 |
Galloway |
9520' |
|
F351.4 |
Arlington |
3100' |
|
F365.5 |
Bartlett |
|
|
F368.8 |
Leewood |
Yard |
End Memphis SD Begin Memphis Terminal SD |
Dresden Branch
12.9 Miles · Dresden to McKenzie |
â SOUTH â |
MP |
Station |
Siding |
Notes |
|
ND129.6 |
Dresden |
|
End of Track |
ND124.5 |
Gleason |
1680' |
|
ND116.6 |
McKenzie |
1760' |
|
Additional Stations |
MP |
Station |
Capacity |
Switch |
Notes |
N112.0 |
Hico |
8 |
North |
|
F331.9 |
Stanton |
5 |
North |
|
F340.5 |
Mason |
10 |
South |
|
| |
Authority for Movement |
Between Location/Mile Post |
Rules |
N90.7 and N93.8 |
120-132 |
N93.8 and N96.8 |
93 |
N96.8 and F368.8 |
120-132 |
ND116.6 and ND129.6 |
120-132 |
| |
DTC Block Limits Between Lipe and Leewood |
Between Location/Mile Post |
Block Names |
N90.7 and N93.8 |
Benton |
N96.8 and N105.0 |
Huntingdon |
N105.0 and N116.9 |
Hico |
N116.9 and F270.3 |
Carroll |
F270.3 and F271.9 |
Trezevant |
F271.9 and F282.4 |
Milan |
F282.4 and F289.2 |
Gibson |
F289.2 and F296.5 |
Humboldt |
F296.5 and F307.2 |
Bells |
F307.2 and F316.2 |
Haywood |
F316.2 and F317.8 |
Brownsville |
F317.8 and F322.0 |
Lasco |
F322.0 and F332.0 |
Stanton |
F332.0 and F344.4 |
Mason |
F344.4 and F346.1 |
Galloway |
F346.1 and F351.5 |
Arlington |
F351.5 and F360.0 |
Bartlett |
F360.0 and F368.8 |
Leewood |
Between McKenzie and Dresden |
N116.6 and N125.0 |
Gleason |
N125.0 and N129.6 |
Dresden |
| |
Maximum Authorized Speed |
Between Location/Mile Post |
MPH |
Bruceton and Leewood |
49 |
McKenzie and Dresden (Dresden Branch) |
25 |
| |
Defect Detectors |
MP |
Location |
Type |
Indicators |
N103.8 |
Huntingdon |
AD |
West side |
F268.6 |
Jarrell |
AD |
East side |
F288.3 |
Gibson |
AD |
East side |
F309.6 |
Jones |
AD |
East side |
F333.1 |
Stanton |
AD |
East side |
F352.1 |
Arlington |
AD |
East side |
| |
Railroad Crossings at Grade |
MP |
Location |
Railroad |
Protection |
|
Milan |
NS |
Automatic |
|
Humboldt |
WTRR |
Stop Signs |
|
