Appalachian Division
Old Road Subdivision
(Anchorage, KY to Winchester, KY)
operated by R.J. Corman
|
Old Road Subdivision-OD

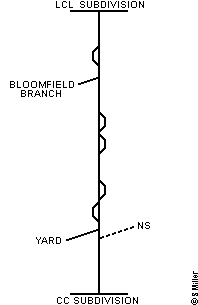

Station List and Diagram
This information comes from the 'CSX Transportation Appalachian Division Timetable No. 1', effective Saturday, January 1, 2000.
|
Radio: BK Dispatcher channel 94, Road channel 84 |
88.0 Miles · HK Tower to North Cabin |
â SOUTH â |
MP |
Station |
Siding |
Notes |
|
W12.5 |
HK Tower |
|
Jct LCL SD Begin Old Road SD |
W23.2 |
Simpsonville |
1627' |
|
W30.6 |
Bloomfield Junction |
|
Jct Bloomfield Branch |
W31.1 |
Shelbyville |
|
|
W50.3 |
Lewis |
5615' |
|
W64.8 |
West Frankfort |
3835' |
|
W65.4 |
Frankfort |
|
|
W70.9 |
Jett |
1819' |
|
W80.9 |
McKee |
3290' |
|
W93.0 |
Lexington |
|
Jct NS |
VB104.7 |
Avon |
|
|
VB113.8 |
North Cabin |
|
End Old Road SD Jct CC SD |
The distance between MP W39.0 and MP W50.0 is 1.0 mile. Mile posts 40 through 49 have been removed.
The distance between MP W93.0 and MP W97.0 is 0.8 mile. Mile posts 94 through 969 have been removed.
The distance between MP W101.0 and MP VB99.0 is 1.6 miles. |
Authority for Movement |
Between Location/Mile Post |
Rules |
W12.5 and VB113.8 |
120-132 |
W30 and W34 |
S-146 |
| |
DTC Block Limits Between HK Tower and North Cabin |
Between Location/Mile Post |
Block Names |
W12.5 and W23.0 |
HK Tower |
W23.0 and W39.3 |
Lewis |
W39.3 and W64.0 |
Frankfort |
W64.0 and W70.5 |
Cliffside |
W70.5 and W73.0 |
Jett |
W73.0 and W80.2 |
McKee |
W80.2 and W92.5 |
Lexington |
W92.5 and W97.7 |
Rupp |
W97.7 and VB104.1 |
Avon |
VB104.1 and VB113.8 |
North Cabin |
| |
Maximum Authorized Speed |
Between Location/Mile Post |
MPH |
HK Tower and North Cabin |
40 |
Bloomfield Branch |
10 |
| |
Defect Detectors |
MP |
Location |
Type |
Indicators |
W21.8 |
Simpsonville |
AD |
West side |
W51.4 |
Bagdad |
AD |
East side |
W60.2 |
|
AD |
DED Only, Voice Instructions |
W72.8 |
Duckers |
AD |
East side |
W99.8 |
Hamilton |
AD |
East side |
| |
Railroad Crossings at Grade |
MP |
Location |
Railroad |
Protection |
|
Bloomfield Branch |
NS |
Electrically locked gate |
|
