Louisville Division
Louisville Terminal Subdivision
(Louisville, KY)
|
Louisville Terminal Subdivision-LT

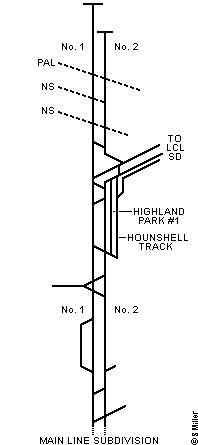

Station List and Diagram
This information comes from the 'CSX Transportation Louisville Division Timetable No. 1', effective Sunday, October 1, 2000.
|
Radio: CL Dispatcher channel 94, Road channel 84, General YM channel 22, Hump Tower YM channel 96, Bowl Tower YM channel 68, Mapother YM channel 22 |
9.2 Miles · 11th Street to Park |
â SOUTH â |
MP |
Station |
Siding |
Notes |
|
0.0 |
11th Street |
|
|
0.2 |
Kentucky Street |
|
|
0.5 |
Oak Street |
|
|
0.8 |
PAL Railroad |
|
|
1.2 |
K&I Junction |
|
Jct NS, To Hoosier SD |
2.1 |
4th Street |
|
Jct NS |
2.8 |
Roundhouse Crossing |
X-over |
|
3.0 TR0.4 |
Central Avenue |
|
To LCL SD |
3.9 |
FX Station |
|
|
4.6 |
Hounshell Track |
|
|
4.9 |
Upper Crossover |
|
|
5.9 |
SW Interlocking |
|
To LH&StL SD |
6.2 |
B19 Switch |
|
To LH&StL SD |
6.8 |
Dudley |
|
|
7.2 |
Space Center |
|
|
8.2 |
Bowl |
|
|
8.4 |
Loop Interlocking |
|
|
9.2 |
Park Interlocking |
|
End Louisville Terminal SD Begin Main Line SD |
5.4 Miles · Frankfort Avenue to Central Avenue |
â SOUTH â |
MP |
Station |
Siding |
Notes |
|
T2.8 |
Frankfort Avenue |
|
End LCL SD, NEDT Begin Louisville Terminal SD |
T1.9 |
North MN |
|
|
T1.8 TR4.8 |
Water Street Lead |
|
Jct Water Street Line |
TR4.6 |
South MN |
X-over |
|
TR3.2 |
Kentucky Street |
|
|
TR2.3 |
Knapp Street |
|
|
TR0.9 |
Floyd Street |
|
Jct NS |
TR0.4 3.0 |
Central Avenue |
|
|
7.5 Miles · SW/Big Ditch to Riverport |
â WEST â |
MP |
Station |
Siding |
Notes |
|
HR7.0 |
National Turnpike |
|
|
HR11.9 |
Stone Street |
|
|
HR14.3 |
Riverport |
|
End Louisville Terminal SD Begin LH&StL SD |
Authority for Movement |
Between Location/Mile Post |
Rules |
11th Street and Kentucky Street |
Mapother Yardmaster |
Kentucky Street and K&I Junction |
Mapother Yardmaster |
K&I Junction and Park |
265-272 (93) |
Frankfort Avenue and Central Avenue |
265-272 (93) |
SW and Texas |
265-272 (93) |
Big Ditch and Texas |
265-272 (93) |
New Albany, IN and Charlestown, IN |
Mapother Yardmaster |
Watson, IN and Jeffersonville, IN |
Mapother Yardmaster |
K&I Junction and New Albany, IN (VI Tower) |
NS Rules |
Water Street Lead |
Mapother Yardmaster |
| |
Maximum Authorized Speed |
Between Location/Mile Post |
MPH |
Eleventh Street and K&I Junction |
10 |
K&I Junction and SW |
20 |
SW and Park |
50 |
SW and Texas |
20 |
Big Ditch and Texas |
20 |
Frankfort Avenue and Central Avenue |
20 |
East Louisville and Water Street Lead/River Road |
10 |
New Albany and Charlestown |
10 |
Watson and Charlestown |
10 |
Watson and Jeffersonville |
10 |
| |
Railroad Crossings at Grade |
MP |
Location |
Railroad |
Protection |
TR0.9 |
Floyd Street |
NS |
Remotely Controlled |
2.2 |
4th Street |
NS |
Automatic |
B50.5 |
X Tower |
LIRC |
Semaphore |
|
Jeffersonville |
LIRC |
Stop signs |
|
