Louisville Division
Big Sandy Subdivision
(Elkhorn City, KY to Catlettsburg, KY)
|
Big Sandy Subdivision-BS

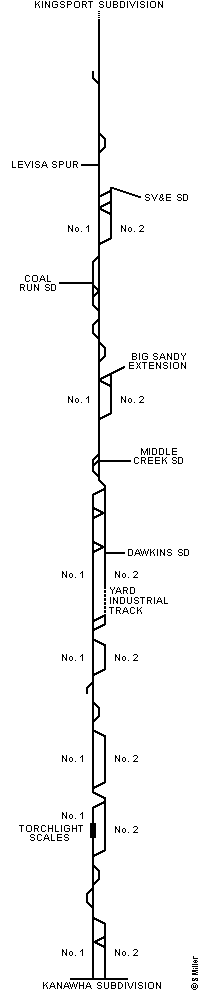

Station List and Diagram
This information comes from the 'CSX Transportation Louisville Division Timetable No. 1', effective Saturday, January 1, 2000.
|
Radio: AO Dispatcher channel 14, Road channel 08 |
126.4 Miles · Elkhorn City to Big Sandy Junction |
â WEST â |
MP |
Station |
Siding |
Notes |
|
Z0.5 CMG128.0 |
Elkhorn City |
|
End KP SD Begin Big Sandy SD |
CMG126.7 |
Dunleary Junction |
|
|
CMG126.3 |
Dunleary |
|
|
CMG121.9 |
RC Junction |
|
|
CMG120.2 |
Marrowbone Junction |
|
|
CMG119.5 |
Marrowbone |
7130' |
|
CMG116.1 |
Levisa Junction |
|
Jct Levisa Spur |
CMG112.8 |
Shelby |
Yard |
Jct SV&E SD |
CMG111.2 |
Fords Branch |
|
EEDT |
CMG109.1 |
FO Cabin |
|
WEDT |
CMG102.1 |
Pauley |
|
|
CMG100.0 |
Coal Run Junction |
25344' |
Jct Coal Run SD |
CMG98.5 |
Wagner |
|
|
CMG93.6 |
Harold |
1229' |
|
CMG88.0 |
Ivel |
7156' |
|
CMG83.3 |
Beaver Junction |
|
EEDT, Big Sandy Extension To E&BV SD |
CMG80.1 |
EM Cabin |
|
WEDT |
CMG73.5 |
Prestonsburg |
|
|
CMG73.4 |
Middle Creek Junction |
7950' |
Jct Middle Creek SD |
CMG68.3 |
OX Cabin |
|
EEDT |
CMG66.9 |
Johns Creek |
X-over |
|
CMG61.8 |
Van Lear Junction |
|
|
CMG61.5 |
Dawkins |
X-over |
Jct Dawkins SD |
CMG60.2 |
Paintsville |
|
|
CMG59.1 |
West End Paintsville |
Yard |
|
CMG58.5 |
BU Cabin |
|
WEDT |
CMG57.3 |
SK Cabin |
|
EEDT |
CMG54.3 |
GC Cabin |
|
WEDT |
CMG51.2 |
Whitehouse |
|
|
CMG46.9 |
Ray |
6977' |
|
CMG43.5 |
JB Cabin |
|
EEDT |
CMG41.8 |
RN Cabin |
|
|
CMG37.4 |
KX Cabin |
|
WEDT |
CMG32.5 |
CH Cabin |
|
EEDT |
CMG29.9 |
Torchlight |
|
Weigh-in-motion scales |
CMG27.3 |
RB Cabin |
|
WEDT |
CMG24.5 |
Louisa |
5500' |
|
CMG17.3 |
Big Sandy |
7459' |
|
CMG9.2 |
WD Cabin |
|
EEDT |
CMG2.0 |
Leach |
X-over |
|
CMG0.0 |
Big Sandy Junction |
|
End Big Sandy SD Jct Kanawha SD |
Note: The distance between MP CMG103 and MP CMG106 is 4,160' |
Authority for Movement |
Between Location/Mile Post |
Rules |
CMG0.0 and CMG58.5 |
265-272 |
CMG58.5 and CMG60.9 |
265-272 (93) |
CMG60.9 and CMG111.2 |
265-272 |
CMG111.2 and CMG114.0 |
265-272 (93) |
CMG114.0 and CMG128.0 |
265-272 |
CMO0.0 and CMO3.2 (Big Sandy Extension) |
265-272 |
Note: Rules 265-272 are in effect on the following sidings: Wagner, Pauley and Marrowbone. |
| |
Maximum Authorized Speed |
Between Location/Mile Post |
MPH |
CMG0.0 and CMG128.0 |
40 |
| |
Defect Detectors |
MP |
Location |
Type |
Indicators |
CMG15.8 |
Zelda |
|
Voice |
CMG32.6 |
Chapman |
|
Voice |
CMG49.8 |
Whitehouse |
|
Voice |
CMG69.7 |
OX Cabin |
|
Voice |
CMG90.5 |
Betsy Layne |
|
Voice |
CMG114.9 |
Sutton |
|
Voice (Note) |
Note: To avoid stopping on detector trains requiring permission to enter the yard must not pass MP CMG115.3 until permission is received. The radio frequency for the defect detector at Sutton MP CMG114.9 is AAR 66, (SCL Road Channel 2). |
|
