Florence Division
Charlotte Subdivision
(Monroe, NC to Bostic, NC)
|
Charlotte Subdivision-C6

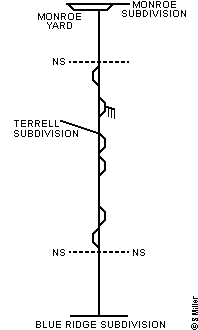

Station List and Diagram
This information comes from the 'CSX Transportation Florence Service Lane Timetable No. 2', effective Thursday, April 1, 1999.
|
Radio: FE Dispatcher channel 59, Road channel 32, Monroe, Pinoca and Bostic Yards channel 66 |
99.3 Miles · Monroe to Bostic Yard |
â SOUTH â |
MP |
Station |
Siding |
Notes |
|
SF306.2 |
Monroe |
|
Jct Monroe SD Begin Charlotte SD |
SF313.1 |
Stouts |
|
|
SF332.4 |
Tryon |
6039' |
Jct NS |
SF334.4 |
Pinoca Yard |
Yard |
|
SF337.3 |
Thrift |
|
|
SF341.8 |
Mount Holly |
|
Jct Terrell SD |
SF345.3 |
Duke |
8421' |
|
SF362.3 |
Lincolnton |
|
|
SF370.8 |
Cherryville |
8570' |
|
SF383.7 |
Shelby |
7040' |
|
SF398.2 |
Ellenboro |
|
|
SF403.8 |
Bostic |
|
|
SF405.5 |
Bostic Yard |
Yard |
End Charlotte SD Jct BR SD |
7.3 Miles · Charlotte to End of Track |
â SOUTH â |
MP |
Station |
Siding |
Notes |
|
SFC4.2 | Charlotte (Pinoca Yard) |
|
|
SFC11.2 |
Mount Holly |
|
|
SFC11.5 |
End of Track |
|
|
Additional Stations |
MP |
Station |
Capacity |
Switch |
Notes |
SF306.2 |
Monroe |
67 |
Both |
|
SF313.1 |
Stouts |
63 |
Both |
|
SF362.3 |
Lincolnton |
46 |
Both |
|
SF398.2 |
Ellenboro |
61 |
Both |
|
| |
Authority for Movement |
Between Location/Mile Post |
Rules |
SF306.2 Monroe and SF307.7 |
93 |
SF307.7 and SF333.0 |
120-132 |
SF333.0 and SF336.0 |
93 |
SF336.0 and SF404.9 |
120-132 |
| |
DTC Block Limits Between South YL Monroe and North YL Bostic |
Between Location/Mile Post |
Block Names |
SF307.7 and SF312.7 |
Lingle |
SF312.7 and SF319.2 |
Stouts |
SF319.2 and SF326.0 |
Matthews |
SF326.0 and SF329.8 |
Charlotte |
SF329.8 and SF333.3 |
Tryon |
SF336.0 and SF339.3 |
Thrift |
SF339.3 and SF344.4 east switch Duke siding on the Charlotte SD, and between Charlotte SD connection track switch Mount Holly SFE0.0 and 50' east of the Mount Holly railroad crossing at grade, SFE0.2 on the Terrell SD. |
Mount Holly |
SF344.4 and SF356.9 |
Duke |
SF356.9 and SF369.9 |
Iron |
SF369.9 and SF377.6 |
Cherryville |
SF377.6 and SF386.9 |
Shelby |
SF386.9 and SF395.7 |
Lattimore |
SF395.7 and SF403.6 |
Ellenboro |
SF403.6 and SF404.9 |
Little |
| |
Maximum Authorized Speed |
Between Location/Mile Post |
MPH |
Monroe and Bostic Yard |
40 |
Charlotte and SFC7.2 |
10 |
SFC7.2 and SFC10.1 |
25 |
SFC10.1 and SFC11.5 |
10 |
| |
Defect Detectors |
MP |
Location |
Type |
Indicators |
SF317.4 |
Mathews |
AD |
East side |
SF353.1 |
Stanley |
AD |
West side |
SF373.8 |
Cherryville |
AD |
West side |
SF391.5 |
Lattimore |
AD |
West side |
| |
Railroad Crossings at Grade |
MP |
Location |
Railroad |
Protection |
SF330.6 |
Charlotte |
NS |
Remotely controlled |
SF341.6 |
Mount Holly |
CSX |
DTC Block |
|
