Atlanta Terminal Subdivision-AA
Station List and Diagram
This information comes from the 'CSX Transportation Atlanta Division Timetable No. 1', effective Friday, October 1, 1999.
|
Radio: AD Dispatcher channel 08, Road channel 66, Hulsey YM channel 44,50,66; Hump YM channel 44,50,66,74; Bowl YM channel 22,44,66; Mainline YM channel 44,66,84; Roundhouse channel 84; Retarder channel 90 |

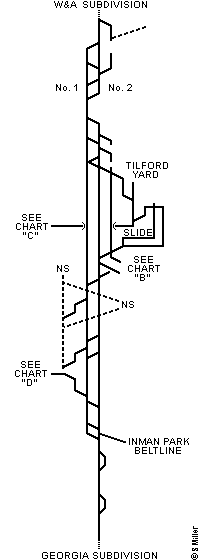

CHART 'A'
44.2 Miles · North Elizabeth (W&A SD) to Lithonia (Georgia SD) |
â SOUTH â |
MP |
Station |
Siding |
Notes |
|
WA22.4 |
North Elizabeth |
|
End W&A SD, NEDT Begin Atlanta Terminal SD |
WA22.2 |
Elizabeth |
|
Jct GNRR |
WA17.6 |
Lockair |
X-over |
|
WA13.1 |
Smyrna |
|
SEDT |
WA7.4 |
Gilstrap |
|
NEDT |
WA6.6 |
Bolton |
X-over |
|
WA4.9 |
Tilford |
|
To Manchester SD (Chart 'C') |
WA3.8 |
Top of Slide |
|
To Abbeville SD (Chart 'B') |
WA2.9 |
Howell Tower |
|
Jct NS |
WA2.7 |
10th Street |
|
Jct NS |
WA1.3 |
Jones Avenue |
X-over |
|
WA0.0 YYG170.8 |
Circle Connection |
X-over |
To A&WP-WofA SD (Chart 'D') |
YYG166.5 |
Kirkwood |
|
Jct Inman Park Beltline, SEDT |
YYG164.8 |
Decatur |
|
|
YYG162.5 |
Scottdale |
|
|
YYG155.2 |
Stone Mountain |
|
|
YYG149.0 |
Lithonia |
|
End Atlanta Terminal SD Begin Georgia SD |

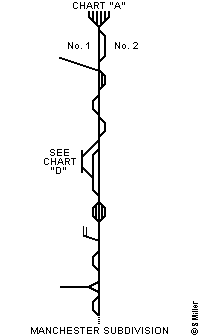

CHART 'B'
15.2 Miles · Tucker (Abbeville SD) to W&A Main Line |
â SOUTH â |
MP |
Station |
Siding |
Notes |
|
SG561.0 |
Tucker |
10192' |
End Abbeville SD Begin Atlanta Terminal SD |
SG567.5 |
Belt Junction |
|
|
SG568.8 |
Emory |
3952' |
Jct Inman Park Beltline |
SG574.0 |
E Switch Long John |
|
NEDT |
SG574.7 |
East Wye |
|
To Howells Yard |
SG575.1 |
South Wye |
|
To Howells Yard |
SG575.3 |
Huff Road |
|
(Chart 'A') |
CHART 'C'
38.1 Miles · Southeast Tilford to Peachtree City (Manchester SD) |
â SOUTH â |
MP |
Station |
Siding |
Notes |
|
ANB865.0 |
SE Tilford |
|
(Chart 'A') |
ANB862.3 |
South Bellwood |
|
NEDT |
ANB858.4 |
Stratford |
|
SEDT |
ANB855.6 |
Fulco Junction |
  |
|
ANB853.7 |
Ben Hill |
4135' |
|
ANB848.0 |
Ackerman |
|
|
ANB844.5 |
NE Union City |
  |
|
ANB844.0 |
Stonewall |
5949' |
Jct A&WP-WofA SD (Chart 'D') |
ANB843.7 |
SE Union City |
|
End Union City passing track |
ANB842.6 |
Dog House |
Yard |
|
ANB836.9 |
Hanson |
|
  |
ANB835.3 |
Tyrone |
3801' |
|
ANB833.0 |
Rock Spur |
|
Jct Rock Spur |
ANB826.9 |
Peachtree City |
5900' |
End Atlanta Terminal SD Begin Manchester SD |

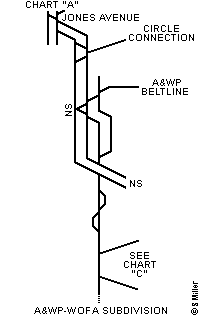

CHART 'D'
11.1 Miles · Jones Avenue to Stonewall (A&WP-WofA SD) |
â SOUTH â |
MP |
Station |
Siding |
Notes |
|
WA1.0 |
Jones Avenue |
|
(Chart 'A') |
S294.3 |
Spring |
|
Jct Circle Connection |
S291.5 XXC5.2 |
Oakland Junction |
|
|
S290.0 |
Tilman |
|
|
S288.2 XXB6.4 |
East Point |
|
Jct NS |
XXB10.0 |
College Park |
6160' |
|
XXB13.4 |
Red Oak |
10000' |
|
XXB16.0 |
Mixon |
  |
|
XXB16.4 |
Stonewall |
|
End Atlanta Terminal SD Begin A&WP-WofA SD (Chart 'C') |
Additional Stations |
MP |
Station |
Capacity |
Switch |
Notes |
YYG164.8 |
Decatur |
  |
Both |
|
YYG155.2 |
Stone Mountain |
  |
Both |
|
ANB848.0 |
Ackerman |
40 |
Both |
|
ANB855.6 |
Fulco Jct Middle Trk |
36 |
Both |
|
ANB855.6 |
Fulco Jct Outside Trk |
36 |
Both |
|
|
|
Authority for Movement |
Between Location/Mile Post |
Rules |
North Elizabeth to Lithonia |
WA22.4 and WA6.9 |
265-274 |
WA6.9 and WA3.7 No. 1 and No. 2 Track |
265-274 |
WA4.9 and WA3.7 No. 3 Track |
265-274 |
WA3.7 and YYG 170.8 |
265-274 |
YYG170.8 and YYG166.5 No. 1 Track |
93 |
YYG170.8 and YYG166.5 No. 2 Track |
243-246 (93) |
YYG166.5 and YYG165.9 |
265-274 (93) |
YYG165.9 and YYG162.4 |
265-274 |
YYG162.4 and YYG149.0 |
120-132 243-246 |
Tucker to Huff Road |
SG561.0 and SG567.5 |
265-274 |
SG567.5 and WA3.0 |
265-274 |
SGB567.5 and SGB569.9 (Inman Park Belt) |
265-274 |
SE Tilford to Peachtree City |
WA4.7 and ANB863.9 |
265-274 |
ANB863.9 and ANB826.9 |
265-274 |
Jones Avenue via NS East Point to Stonewall |
WA1.0 and XXB6.4 via NS |
NS Rules |
XXB6.4 and XXB16.4 |
265-272 |
|
|
DTC Block Limits Between Scottdale and Lithonia |
Between Location/Mile Post |
Block Names |
YYG154.5 and YYG149.0 |
Redan |
YYG154.0 and YYG162.4 |
Stone Mountain |
|
|
Maximum Authorized Speed |
Between Location/Mile Post |
MPH |
North Elizabeth to Lithonia |
WA22.4 and WA0.9 |
35 |
YYG170.0 and YYG149.0 |
50 |
Tucker to Huff Road |
SG561.0 and SG575.3 |
45 |
SGB567.1 and SGB569.9 (Inman Park Belt) |
20 |
SE Tilford to Peachtree City |
ANB863.9 and ANB826.9 |
55 |
Jones Avenue via NS East Point to Stonewall |
S294.3 and S288.2, XXB6.4 |
30 |
XXB6.4 and XXB16.4 |
50 |
|
|
Defect Detectors |
MP |
Location |
Type |
Indicators |
ANB845.8 |
Union City |
|
Voice Instructions |
YYG152.9 |
Stone Mountain |
|
Voice Instructions |
XXB15.7 |
Mixon |
|
Voice Instructions |
|
|
Railroad Crossings at Grade |
MP |
Location |
Railroad |
Protection |
WA3.0 |
Howell Tower |
NS |
Remotely Controlled |
WA2.8 |
10th Street |
NS |
Remotely Controlled |
|
